miniABA45×50×1000
HUACHU MACHINERY

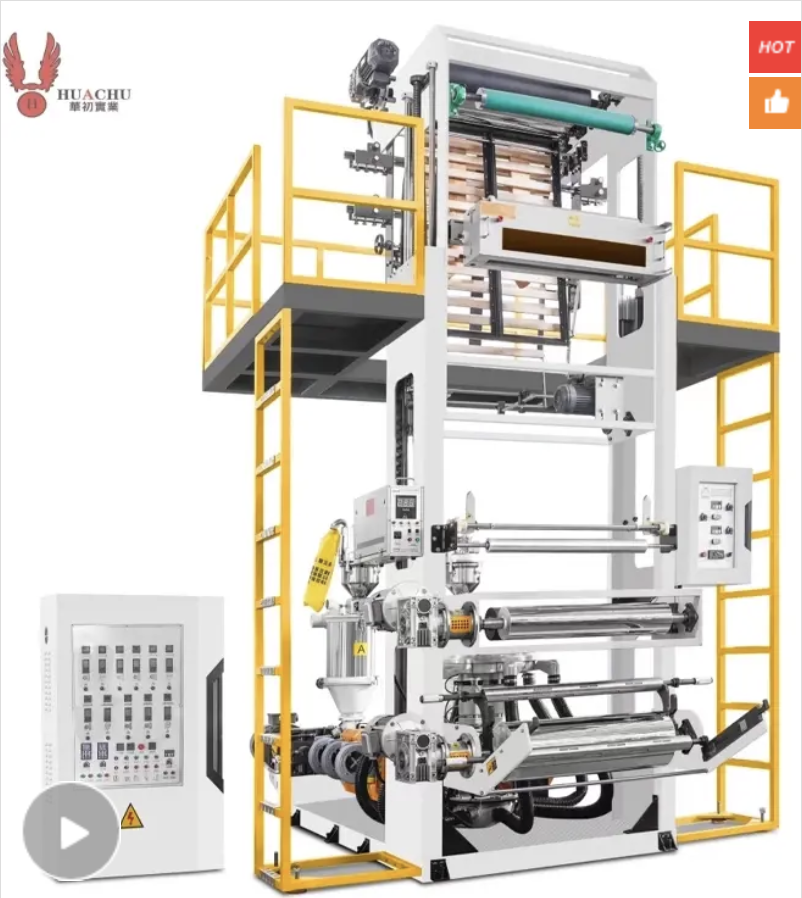

The Mini Type High-Speed Three-layer ABA Film Blown Machine (Model: miniABA45×50×1000) is a high-performance plastic film production equipment independently developed by HUACHU MACHINERY. As a professional two-screw ABA plastic blown film machine, it is specially engineered for blowing HDPE and LDPE films, and also compatible with LLDPE and EVA raw materials. This machine integrates high output, superior film quality and cost-saving features, which can effectively help manufacturers optimize production efficiency and reduce operational costs. It is an ideal choice for small and medium-sized enterprises that pursue high-quality film production with limited workshop space.
The machine supports a wide range of raw materials including HDPE, LDPE, LLDPE and EVA.
It can flexibly switch between different materials to produce films with various performance characteristics to meet diverse market demands.
The equipment realizes high capacity output with low energy consumption, with a maximum output of 160kg/h.
It can significantly increase production efficiency on the premise of energy saving, and improve the economic benefits of enterprises.
The bimetallic screw and barrel ensures excellent mixing quality of raw materials and extends the service life of the components.
It is equipped with a high-class gear box with enforced lubrication system and oil cooler, which guarantees stable operation of the machine.
The height-adjustable nip rolls can be flexibly adjusted according to the production needs, improving the flatness and quality of the finished film.
Parameters | Details |
Model | miniABA45×50×1000 |
Screw diameter | φ45×50 |
Width of film | 300-900mm |
Thickness of film (HDPE) | 0.008-0.06mm |
Die size | HDPE ABA φ80/100 (can add LD die head) |
Max output | 160kg/h |
Screw L/D length | 32:1 |
Screw and cylinder material | Bimetallic |
Main motor | 18kw×22kw Siemens |
Gearbox model | 146×146 |
Take up motor | 1.5kw |
Blower | 5.5kw |
Weight | 4.6T |
The HDPE/LDPE films produced by this machine have good toughness and barrier properties, which can be used to make food packaging bags, fresh-keeping films and other products to ensure the safety and freshness of food.
It is suitable for producing packaging films for daily necessities such as laundry detergent bags, cosmetic bags and tissue packaging. The films have strong tensile strength and are not easy to break.
The machine can produce industrial packaging films with excellent load-bearing performance, which are used for packaging building materials, hardware tools and other products to play a role in moisture-proof and scratch-proof protection.
This three-layer ABA film blown machine is mainly used for processing HDPE and LDPE, and it also supports LLDPE and EVA raw materials, with strong compatibility.
Under the optimal operating conditions, the maximum output of the machine can reach 160kg/h, which can meet the production needs of most small and medium-sized enterprises.
Yes. The machine is equipped with an enforced lubrication system and oil cooler for the gear box, which reduces the wear of components. Regular maintenance only needs to check the oil level and replace the lubricating oil on time.
